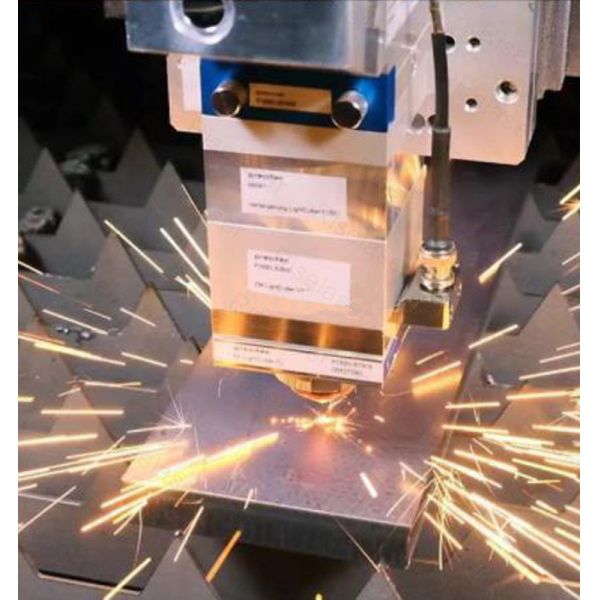

High Laser Power Precitec Light Cutter 2.0 Pro fiber laser cutting head For Metal Cutting

Name: High Laser Power Precitec Light Cutter 20 Pro fiber laser cutting head For Metal Cutting
Brand: Riselaser
Price: 1 USD

China High Laser Power Precitec Light Cutter 2.0 Pro fiber laser cutting head For Metal Cutting wholesale

Brand Name : Riselaser

Model Number : Lightcutter 4kw/6kw

Certification : ISO, CE

Place of Origin : China

MOQ : 1 SET

Price : Negotiable

Supply Ability : 50 SET/WEEK

Delivery Time : 5-9 working days

Packaging Details : PLYWOOD BOX

Brand : Precitec

Version : 2D/3D

Max. laser power : 6 kW (2D version only)

Focus lengths : 125, 150, 200 mm

Dimensions (WXD) : 130 x 69 mm

Weight : 4.0 kg

Match laser : Fiber laser 2kw 3kw 4kw 6kw

Collimating focal length : 100 mm

Contact Now

High laser power Precitec Fiber Laser Cutting Head Light Cutter 2.0 Pro cutter 2.0 4kw 6kw For Metal Cutting

Cutthing head features

Whether for flatbed or bevel cutting systems: The cutting head LightCutter 2.0 is the perfect solution for efficient and cost-effective laser cutting. The new generation of our Light Cutter family is designed for cutting applications in the medium power range up to 4 kW and is characterized by a high cutting quality for all metals - especially mild steel, stainless steel and aluminum.Due to an automated motor-driven adjustment of the axial focus position, the cutting head works precise and stable at all times,even at accelerations of up to 3 g. The display of the set focus position on the front of the cutting head makes commissioning much easier. The LightCutter 2.0 Motorized covers a large Focus position range of 23 mm.

Specifications

Items	Data
Laser Wavelength	1030 … 1090 nm
Laser Power max.	6 kw
Collimation focal length (fC)	100mm
Focusing focal length (fF)	150 mm and 200 mm (with VA)
NA specification	99,0% included energy at Ɵ no more than 120 mrad
Average Transmission	> 97% @ 1030 - 1090 nm
Adjustment range	– horizontal (3 mm)
Adjustment range	– vertical (focal position)
Weight	approx. 4,4 kg / approx. 5,0 kg

High Laser Power Precitec Light Cutter 2.0 Pro fiber laser cutting head For Metal Cutting

Cutting head contrucitons

Cutting samples

Machine Packing
